Light repair automation equipment mainly realizes manless wellhead operation.
Light repair automation equipment mainly realizes manless wellhead operation.
| S/N | Name | Parameter |
|---|---|---|
| 1 | 使用温度范围 Operating temperature range | -20 °C ~ +50 °C |
| 2 | 使用湿度范围 Operating humidity range | ≤ 95%（环境温度+20 °C） (ambient temperature + 20 °C) |
| 3 | 工作台面面积 Working Platform area | 2000 x 3150 mm |
| 4 | 工作台面可调高度范围 Adjustable height range of working platform | 1300 ~ 2500 mm |
| 5 | 液压系统额定压力 Rated pressure of hydraulic system | 10 MPa |
| 6 | 液压钳低档最大扭矩 Maximum torque of hydraulic tong at low gear | 3900 N/m |
| 7 | 液压钳高档最大扭矩 The maximum torque of high-grade hydraulic tong is | 1100 N/m |
| 8 | 产品结构安全等级 Product structure safety level | E2/U2 |
| 9 | 产品性能等级 Product performance grade | PSL 1 |
| 10 | 油管直径范围 Tubing diameter range | Φ 73～Φ89 (mm) |
| 11 | 控制方式 Control mode | PLC控制 PLC control |
| 12 | 控制电压 Control voltage | 24V |
| 13 | 油管加工节拍 Tubing processing beat | 40根/小时 40 jts / H |
1.The hydraulic tong can automatically and quickly make up and break out and switch the plug valve, which can realize the function of emergency blowout;
2.Automatic switch of hydraulic elevator, automatic turnover and automatic deflection, which can realize a variety of pipe string clamping;
3.Integrated installation of wellhead platform and wellhead device, light weight and adjustable height; With effusion function; It can realize automatic lifting and turning, transport with the vehicle, and can also be installed in complete sets independently;

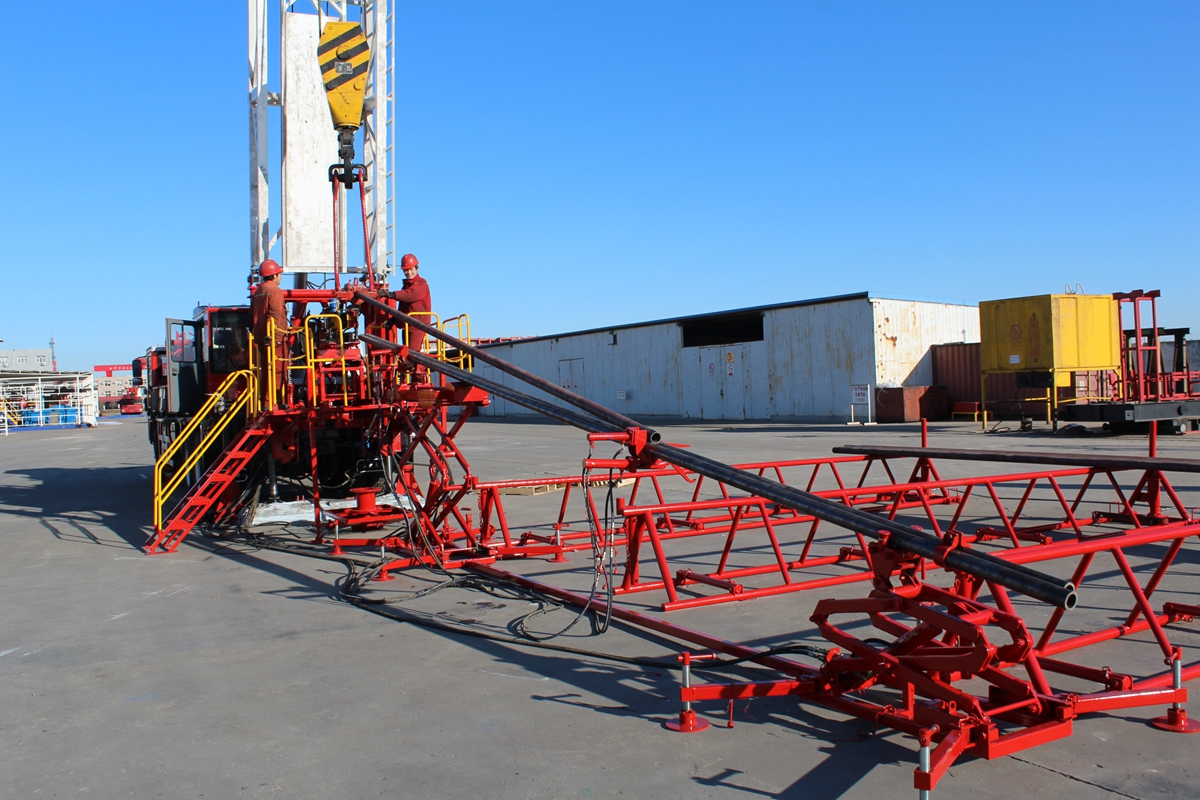

4.Automatic catwalk can realize automatic loading and unloading of pipe tools and automatic measurement of pipe and rod length; It can realize one key program control without manual operation during normal lifting and lowering;
5.The control system adopts electro-hydraulic control and explosion-proof electrical appliances to meet the explosion-proof requirements of the wellhead;
6.The automation equipment section is applied to workover and pulling unit.
