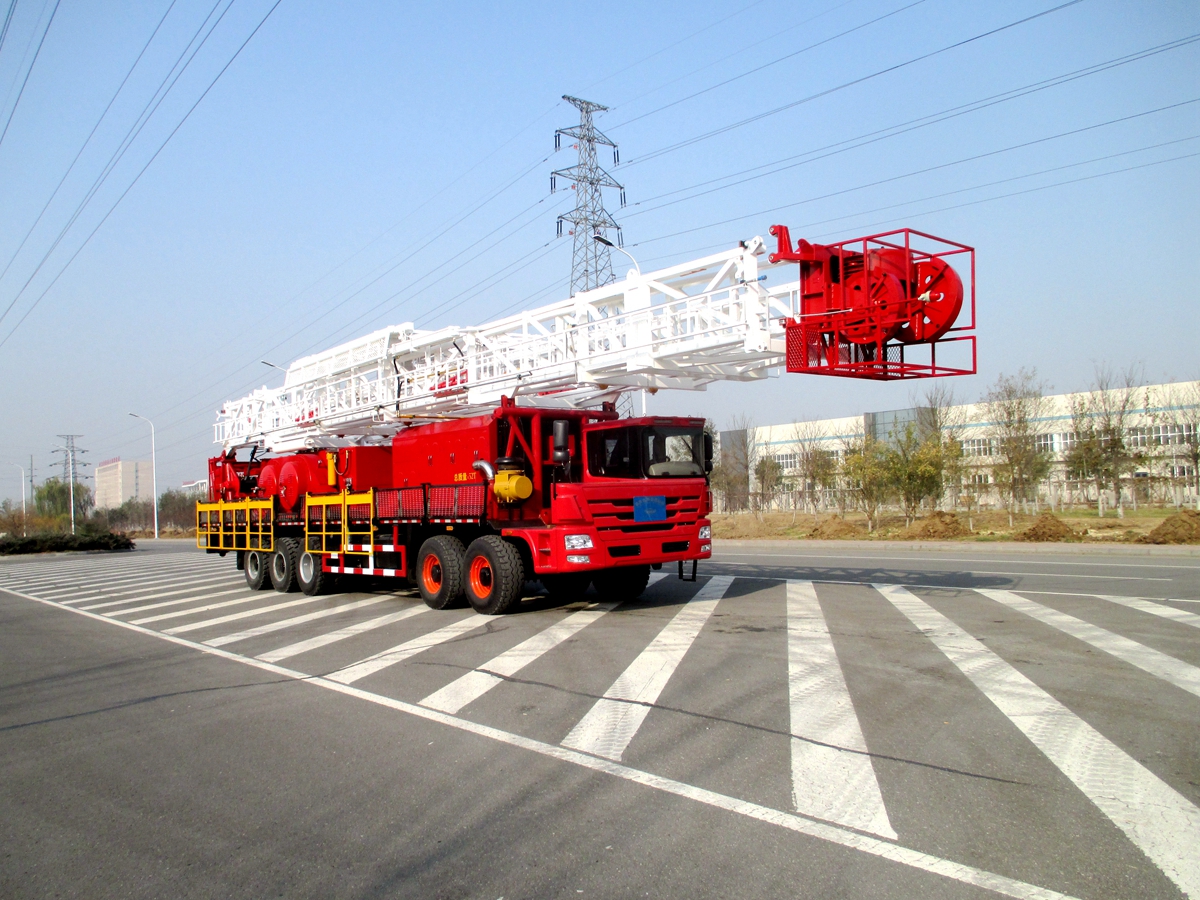

Truck mounted drilling rig is to install the power system, drawworks, mast, traveling block system, transmission system and other components on the self-propelled chassis. The whole rig has the characteristics of compact structure, high integration, small floor area, fast transportation and high relocation efficiency.
| S/N | Product Model | ZJ10 | ZJ15 | ZJ20 | ZJ30 | ZJ40 | ZJ40(250) |
|---|---|---|---|---|---|---|---|
| 1 | 最大钩载 (千牛) Maximum hook load (KN) | 900 | 1350 | 1600 | 1800 | 2250 | 2500 |
| 2 | 钻井深度(114mm钻杆) (米) Drilling depth (114mm DP)(m) | 1000 | 1500 | 2000 | 3000 | 4000 | 4500 |
| 3 | 发动机功率 (千瓦) Engine power (KW) | 294 | 405 | 485 | 405×2 | 485×2 | 485×2 |
| 4 | 游动系统绳数 Rope number of traveling system | 6 | 8 | 8 | 10 | 10 | 10 |
| 5 | 钢丝绳直径（毫米） Wire rope diameter (mm) | φ26 | φ26 | φ29 | φ32 | φ32 | φ32 |
| 6 | 井架高度 (米) Mast height (m) | 21252931 | 3335 | 3536 | 3839 | 3839 | 3839 |
| 7 | 钻台高度 (米)Drill floor height (m) | 2.73.7 | 3.74.5 | 4.556 | 66.8 | 66.87.5 | 66.87.5 |
| 8 | 转盘开口直径 （毫米） Opening diameter of rotary table (mm) | 444.5 | 444.5 | 444.5 | 698.5 | 698.5 | 698.5 |
| 9 | 底盘驱动型式Chassis drive type | 8×810*8 | 10×8 | 12×8 | 14×8 | 14×10 | 14×10 |
| 10 | 排放标准 Emission standard | 国Ⅵ National Standard Ⅵ | |||||
1.The product series is complete, which can meet the drilling operation requirements of 1000m-4500m.
2. The engine is an internationally famous brand, which can meet the emission level of national VI at most.
3. Hydraulic and mechanical transmission is adopted, with stable transmission, low impact and high comprehensive efficiency.
4. The chassis of self-made oilfield special vehicle is adopted, which has excellent off-road performance, mobility and safety performance, and meets the complex road conditions of the oilfield.
5. Drawworks main brake adopts the band brake or hydraulic disc brake for option. The auxiliary brake can be pneumatic push disc type, pneumatic caliper disc type and water brake. The sand drum is Optional. The design and manufacture of drawworks parts comply with API 7K specification.
6. The mast is hydraulically raised and telescoped, and its design and manufacture comply with API 4F specification.
7. The drill floor size and height can be customized according to user requirements.
8. The electric, air and hydraulic circuit systems are controlled centrally, and the main components are selected by the imported well-known brand.
9. Products with special environmental requirements such as alpine, desert, plateau and beach can be customized.
